Track & Facilities

FTTA’s Fowlerville Proving Ground is open year-round, as tracks are meticulously maintained and cleared of snow and ice during the winter season to ensure consistent, repeatable test results. Strategically located earth berms add to the aesthetic beauty of the facility while ensuring absolute privacy to all vehicles on the tracks or in testing areas. Parking areas, garages and offices are all available based on customer needs.

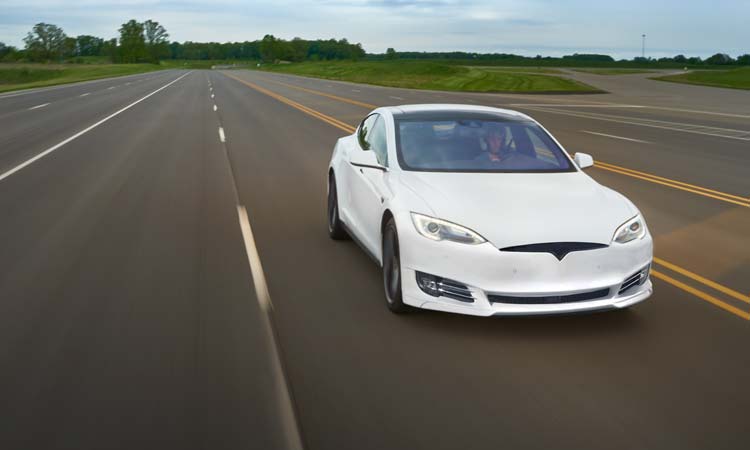

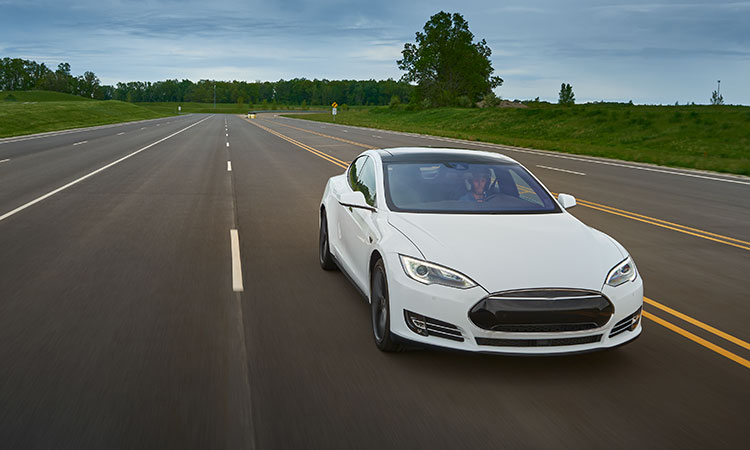

  • Road A - Straightaway

    Road A is a four lane straightaway that is 4,500 ft. (1,370m) in length. Two lanes run south and two lanes run north, with turn-around loops at both ends. Each set of lanes has a fast lane and a slow lane; brief stopping is allowed on the slow lane.

    • Straight, level, asphalt road
    • Four lanes wide
    • Turn-around loops at both ends
    • 4,500 ft. (1,370m) in length
    • Designed friction coefficient of 0.92 +/- 0.02

    BACK TO TOP

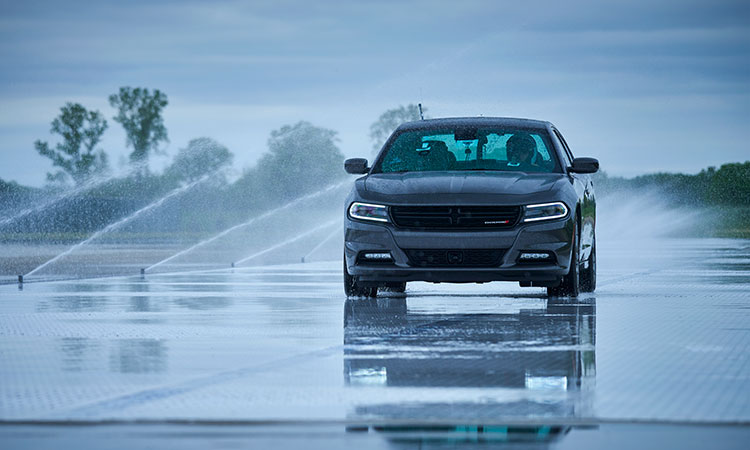

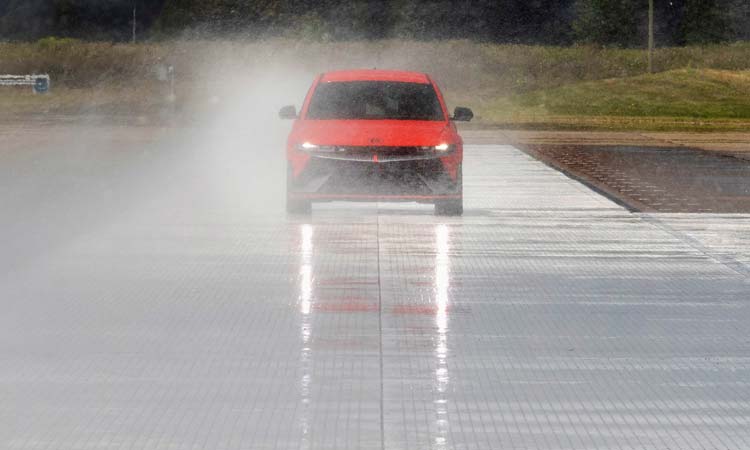

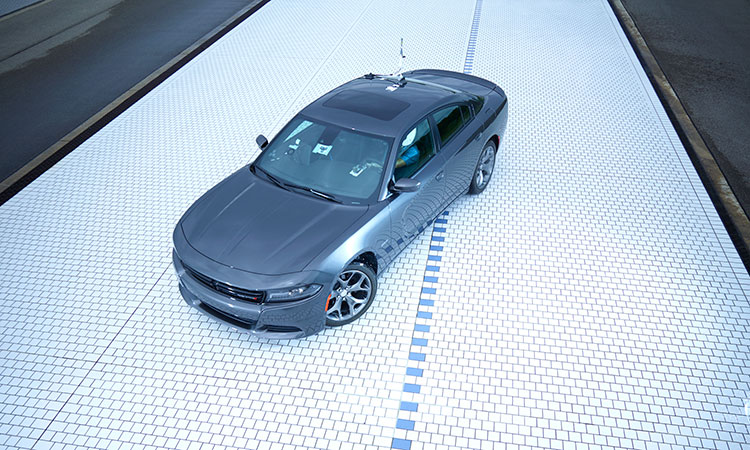

  • Road B - Low μ

    Road B features three separate testing surfaces – two tiled and one asphalt – each with different coefficients of friction. An underground sprinkler system is used to apply water on all three surfaces at the same time or separately.

    Low friction ceramic tiles (simulating ice)

    • Designed friction coefficient of 0.09 – 0.12 (wet)
    • 700 ft. (213m) in length
    • 31 ft. (9.5m) wide (at widest point)

    Middle friction basalt tiles (simulating snow)

    • Designed friction coefficient of 0.25 – 0.35 (wet)
    • 700 ft. (213m) in length
    • 51 ft. (15.5m) wide (at widest point)

    Asphalt surface (wet asphalt)

    • Designed friction coefficient of 0.80 +/- 0.05 (wet)
    • 350 ft. (107m) in length
    • Straight, level asphalt surface

    Approach to the Tile Surfaces

    • Designed friction coefficient of 0.95 +/- 0.05 (dry)
    • 1,350 ft. (411m) in length
    • Straight, level, asphalt road

    BACK TO TOP

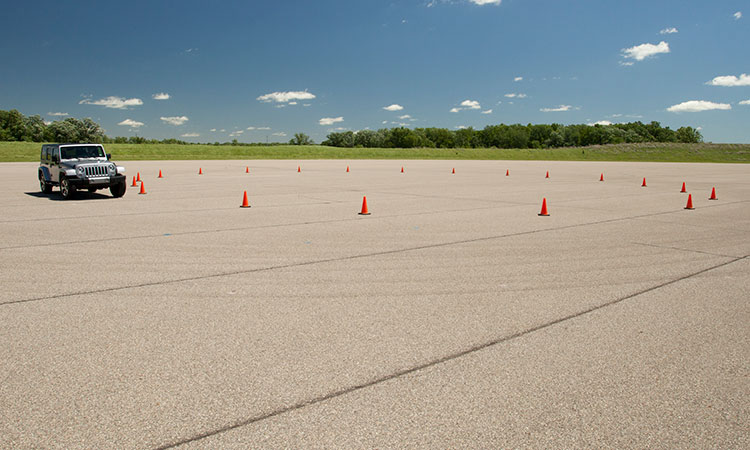

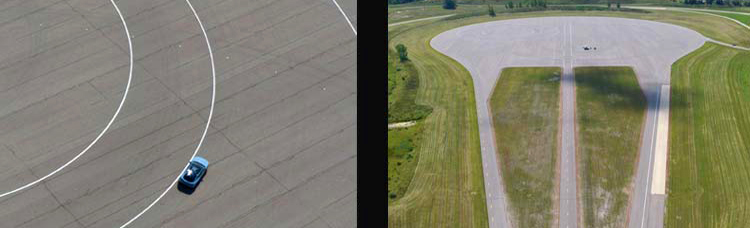

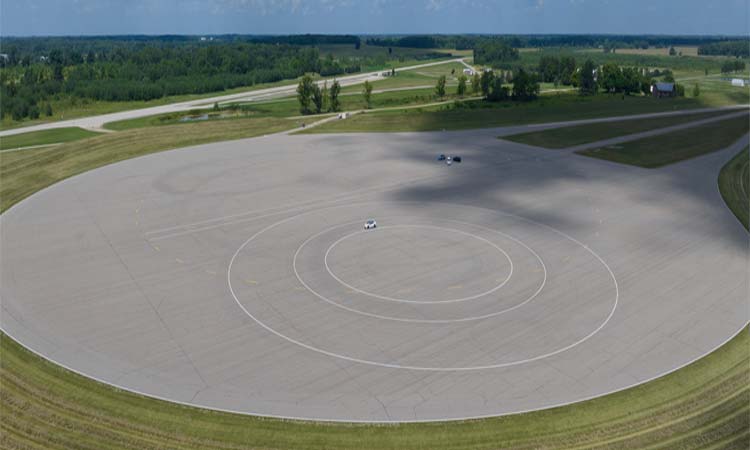

  • Road C - Dynamic Pad

    A large, versatile asphalt pad meant for a variety of tests. 3 approach lanes give users flexibility to maneuver. Currently marked for 30mR, 40mR, 60mR and 100mR., and single and double lane change. Contains a NHTSA lane departure confirmation test course – solid white, dashed yellow and bott’s dots.

    • Designed friction coefficient of 0.92 +/- 0.02
    • 3 separate approach/departure lanes – each 1,350 ft. (411m) long
    • Flat, level, asphalt circle
    • 1000 ft. (305m) diameter
    • Marked radius circles for 30mR, 40mR, 60mR and 100mR.

    BACK TO TOP

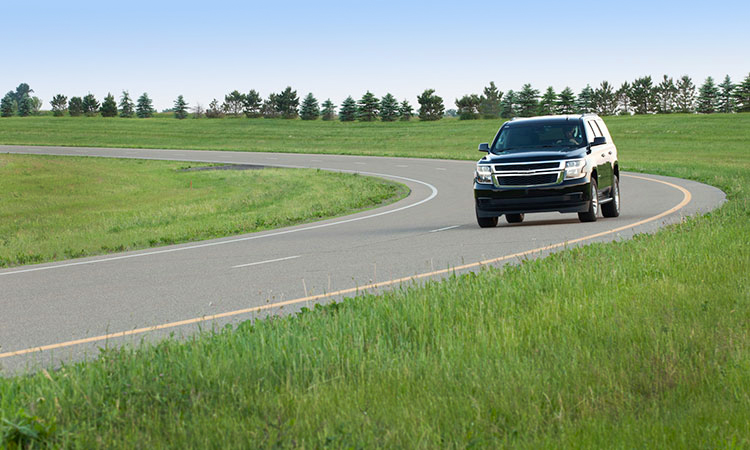

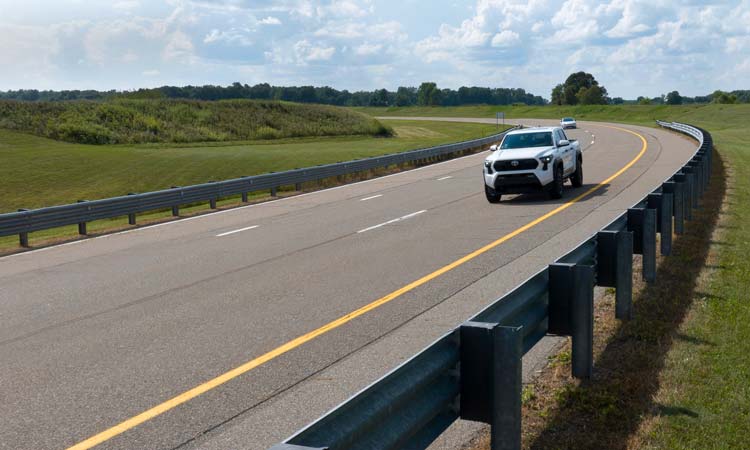

  • Road D - Oval Track

    A 3-mile (4.8 km) asphalt oval track, consisting of two 12 ft (3.5m) wide lanes. The curves are a 7% grade with no banking. The north curve has a decreasing radius. Includes a staging area.

    • Two lanes, each 12 ft. (3.65m) wide
    • Maximum 7% grade in curves; no banking
    • South curve has a constant radius of 1,000 ft. (305m)
    • North curve has decreasing radius from 1,500 ft. (457m) to 1,000 ft. (305m)
    • Straightaways are 4,500 ft. (1,371m) in length

    BACK TO TOP

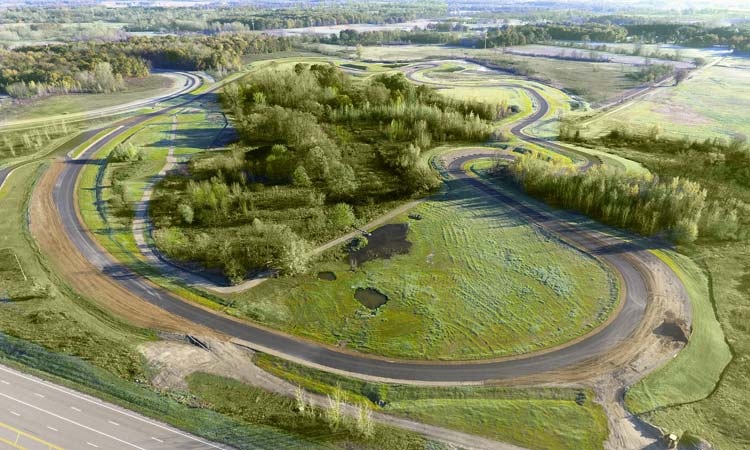

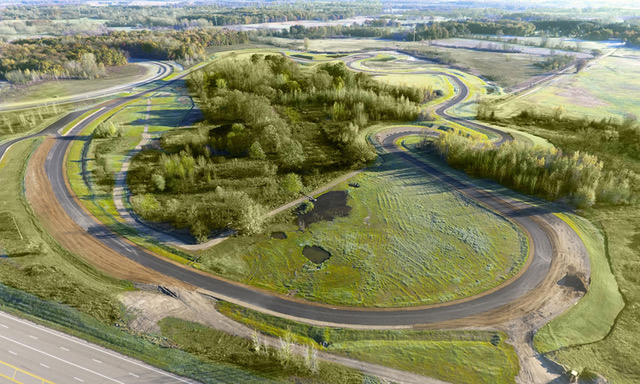

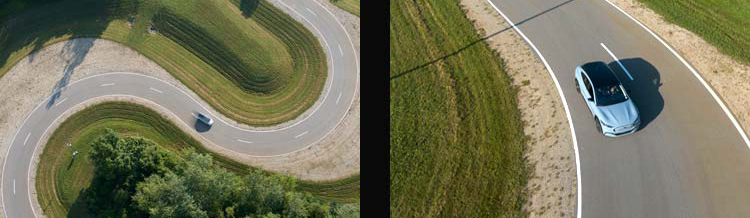

  • Handling Course

    Supports a wide range of development activities including vehicle dynamics, ride and handling, and many others.

    Handling Course Specifications and Features:

    • Asphalt surface with varying curves and elevation changes
    • Length: 1.4 miles (2.25Km)
    • Width: 2 lanes, each 12 foot (3.7m) wide
    • Optional wet section 1,700 feet (518m) in length

    BACK TO TOP

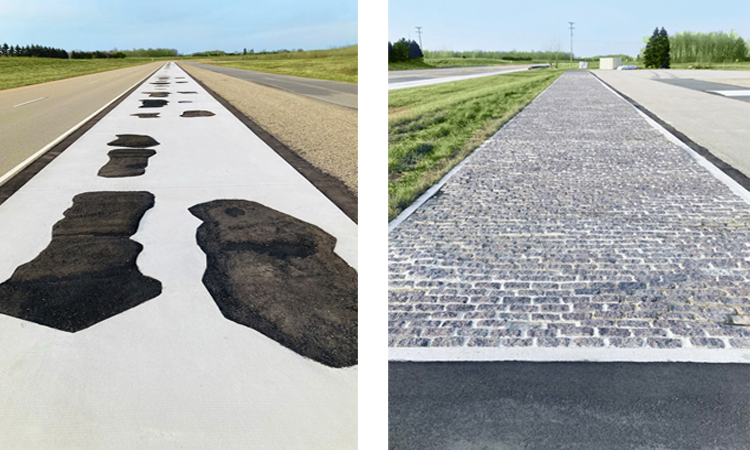

  • Special Surfaces and NVH

    A wide variety of unique ride events, featuring:

    High Speed Special Surfaces

    • Ride Comfort (Primary and Secondary Ride)
    • Noise and Vibration
    • Patched Concrete
    • Manhole Covers

    Low Speed Special Surfaces

    • Harshness Bars
    • Belgian Blocks
    • Wavy Road
    • Step down/up
    • Bottoming/topping

    BACK TO TOP

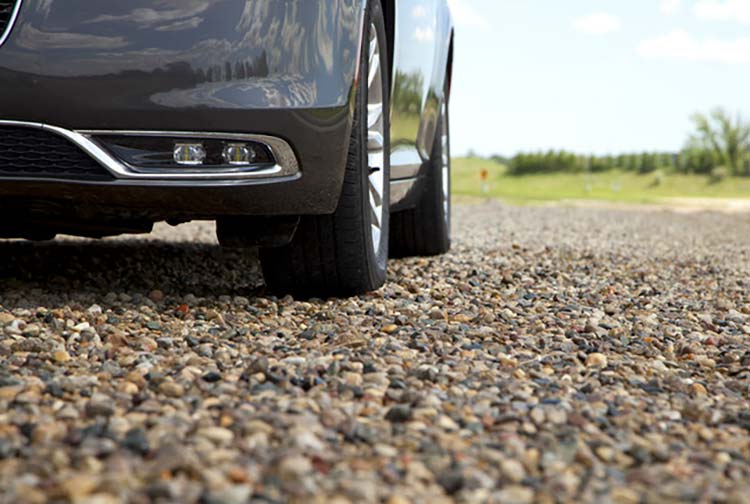

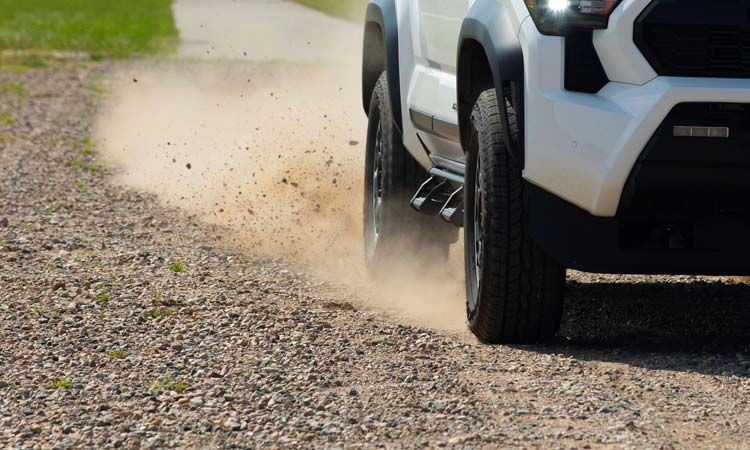

  • Gravel Pad

    Gravel Pad Surface

    • Contains Michigan Department of Transportation standard specification M22A road gravel
    • Smooth, flat gravel pad simulating real world conditions
    • 600 ft. (182.9m) in length and 52 ft. (15.8m) wide

    BACK TO TOP

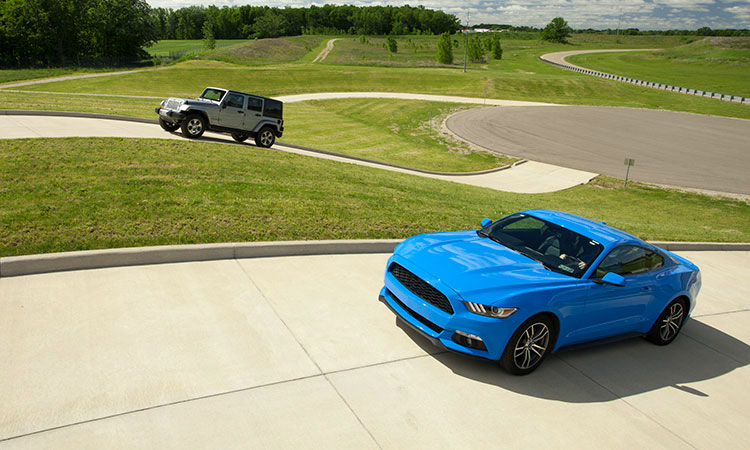

  • Brake Hills

    Concrete Surface Brake Hills

    • Three separate graded hills, consisting of 15%, 20% and 30% grades
    • Located on the south end of Road A

    BACK TO TOP

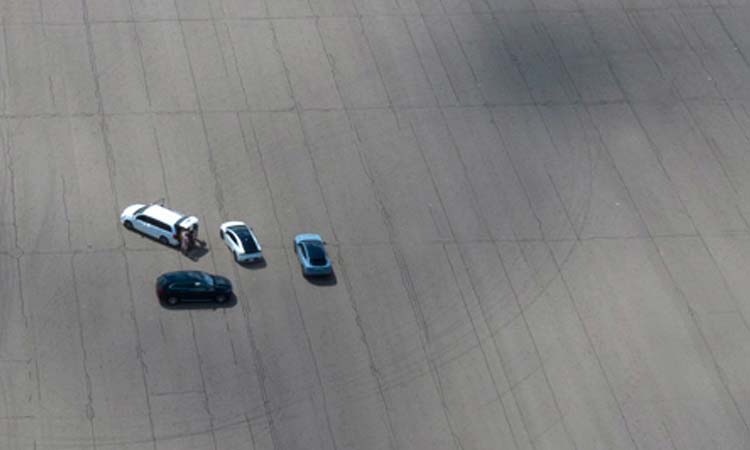

  • ADAS Pad

    A multi-purpose pad designed for testing and development of advanced driver assistance systems (ADAS) and autonomous technologies.

    • 300 ft. x 500 ft. (91m x 152m) multi-purpose dynamic pad
    • 1,500 ft. (457.5m) straightaway approach
    • Total Length: 2,300 ft. (701m)

    BACK TO TOP

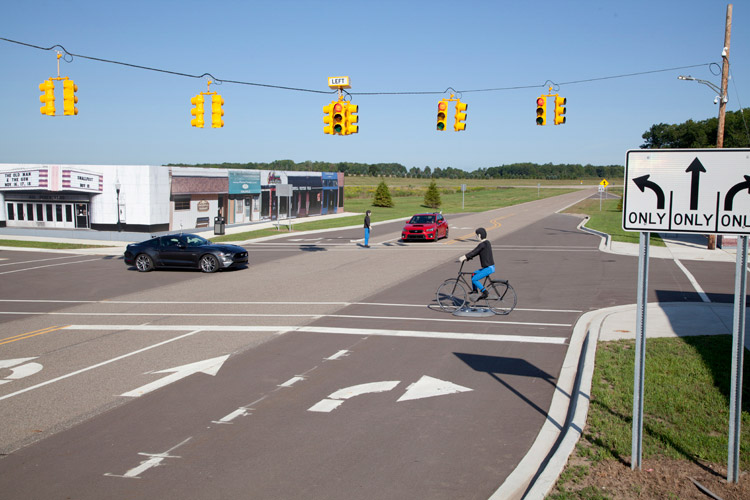

  • ADAS City

    A multi-purpose facility designed for a variety of unique, real-world settings, specializing in autonomous testing.

    • 5 lane intersection with configurable traffic signals and V2X capability

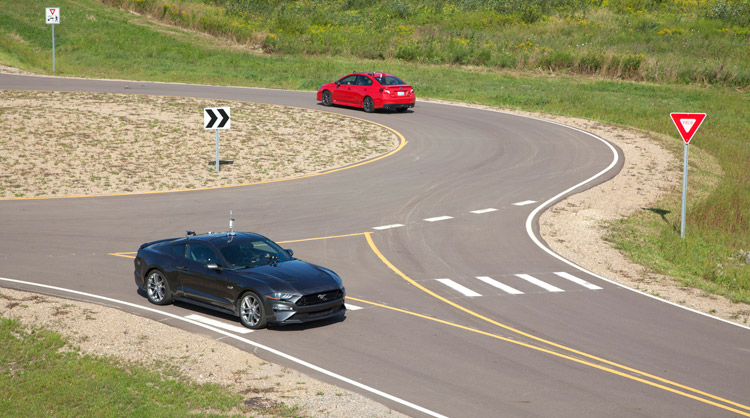

    • 2 lane, 100 ft. (30.5m) diameter round-about
    • Highway entry/exit, rural intersection, tunnel/overpass, pedestrian crosswalks
    • Supporting 3D GVT Vehicle Platform and Target, Pedestrian VRU platform, and both SSV and FCT/ADAC tow behind test rig systems

    BACK TO TOP

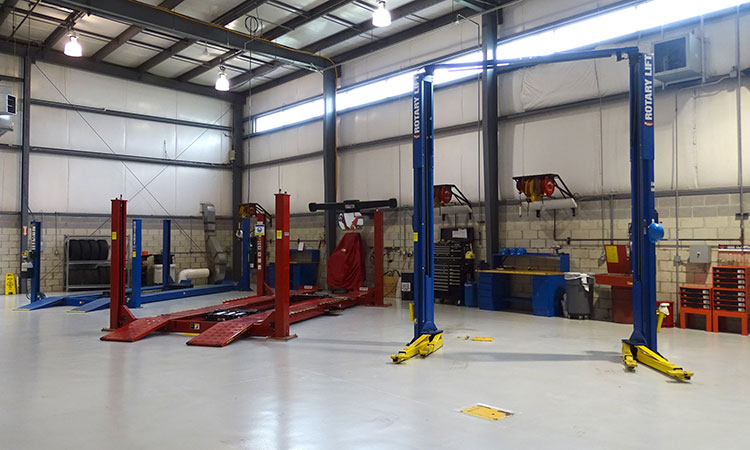

  • Operations & Garage/Office 2

    Garage & Office 2

    • 6,000 square-foot of garage
    • Fully stocked with hand and power tools
    • Two post and four post automotive lifts
    • Tire mounting and balancing equipment
    • Alignment rack
    • Well-equipped machine shop
    • Scales available upon request

    BACK TO TOP

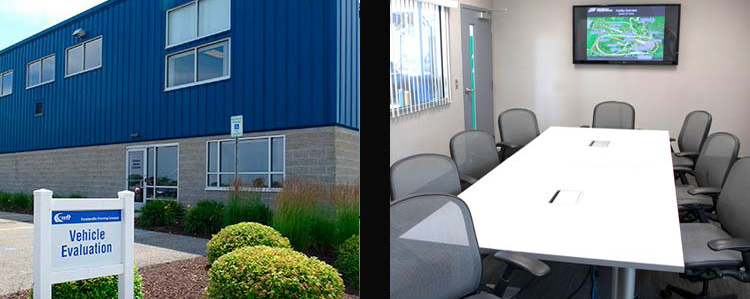

  • Vehicle Evaluation & Garage/Office 3

    Our Vehicle Evaluation services provide specialized engineering services with the test equipment tools to support all your vehicle testing needs. For more information about our Vehicle Evaluation team and capabilities, please visit our Vehicle Evaluation Page.

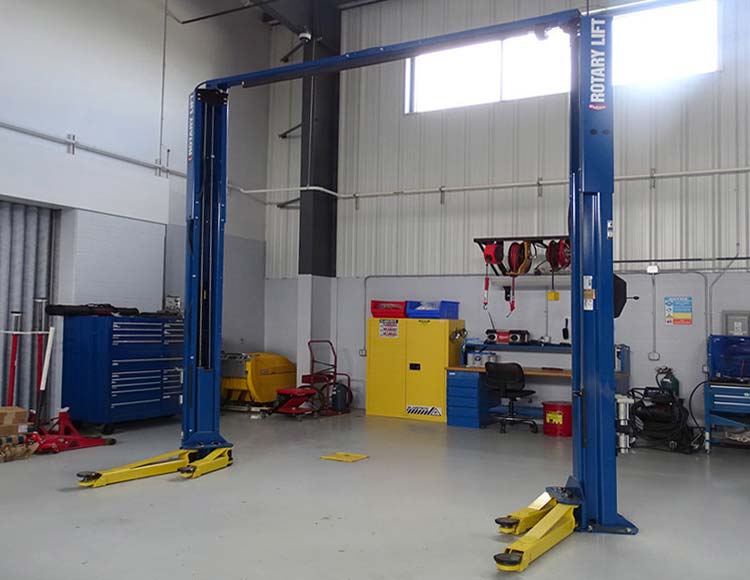

    Garage & Office 3 are available for events and/or collaboration with our VE team.

    • 6,000 square-foot of garage
    • Two post automotive lift
